Looking for embroidery guidelines, logo embroidery requirements, or tips for preparing embroidery-ready artwork for your Stadium swag? This guide covers embroidery design limitations, digitizing, text sizing, gradients, puff embroidery, cap embroidery, and more to help ensure clean, professional embroidery results on hats, polos, hoodies, and other branded apparel.

Because embroidery is a physical stitching process, some artwork may need adjustments to improve readability, durability, and overall stitch quality.

🖥️ What Is Digitizing?

Digitizing is the process of converting your logo or artwork into a stitch file that embroidery machines can read. Each embroidery type and size requires a separate digitized file.

⚠️ Avoid the Following

• Lines thinner than 1 mm
• Text smaller than 0.25 inches (6–7 mm height)
• Excessive small details
• Overlapping elements
• Gradients or shading effects

✅ Best Practices

• Use flat, solid colors
• Use bold shapes
• Limit colors when possible (typically 1–6 colors)
• Provide vector files

🔍 Small and Fine Details

Small, fine details are one of the biggest troublemakers in embroidery. What looks sharp on screen often turns messy on fabric.

✅ Recommendations

• Remove unnecessary textures or distressed effects
• Eliminate tiny background elements
• Avoid using design elements smaller than 1 mm in width, as fine details can lead to color inconsistencies and increased stiffness in the embroidery
• Use larger solid-filled shapes instead of multiple tiny elements

Using simple, bold artwork helps improve stitch quality, color consistency, and overall readability.

❌ Sample Artwork with Complex Details	🪡 Embroidery Result
.

✅ Sample Artwork with Bold Details	🪡 Embroidery Result

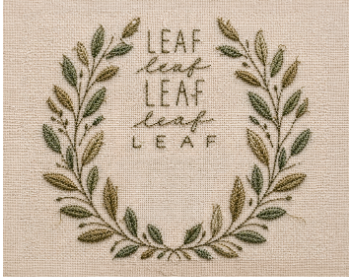

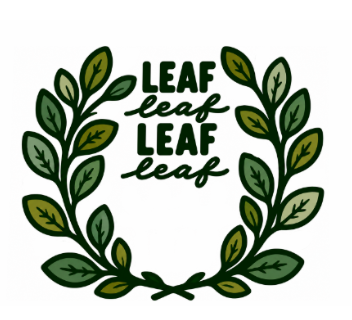

🔠 Small and Thin Text

When working with embroidery, text size and stroke thickness are critical factors that directly impact readability and production quality.

Unlike printing, embroidery relies on physical thread, which requires enough width to properly form stitches.


⚠️ Common Issues with Thin Text

Very small or thin text often results in:

• Broken stitches
• Thread gaps
• Unreadable characters once produced
• Script fonts or hairline typography are particularly problematic, as their delicate structure cannot be maintained in thread form

✅ Best Practices

• Use bold or semi-bold fonts
• Increase text size
• Use fonts with stronger, more consistent stroke widths
• Avoid hairline or script typography
• Maintain at least 1 mm stroke thickness

For best readability, text should generally be at least 0.25 inches (6–7 mm) tall.

❌ Sample Artwork with Small and Thin Text	🪡 Embroidery Result

✅ Sample Artwork with Bold and Big Text	🪡 Embroidery Result

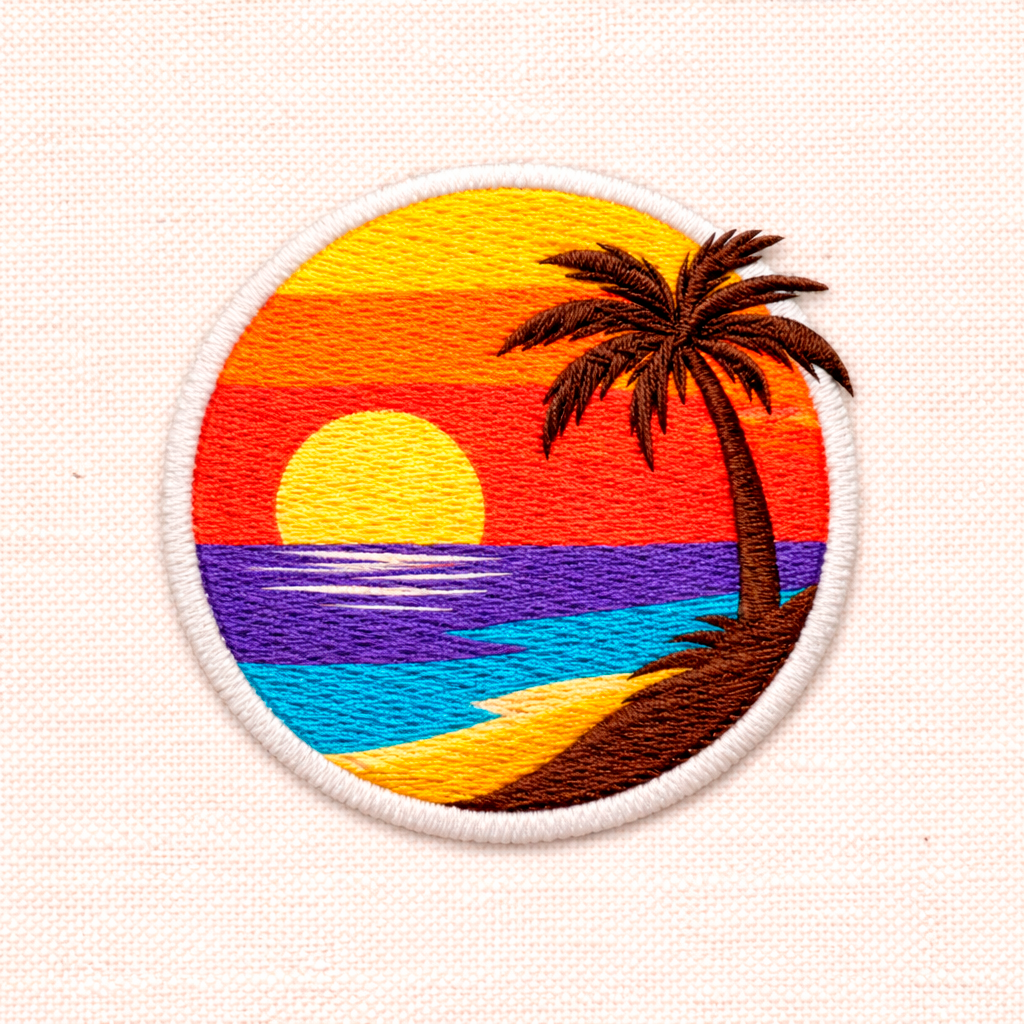

🌈 Gradients

Gradients do not translate effectively into embroidery because embroidery machines work with discrete thread colors; they cannot reproduce smooth transitions between tones.

⚠️ What Happens with Gradients?

Gradients often become:

• Visible steps or "bands" of color
• Harsh transitions
• Inconsistent stitching results

 This not only affects aesthetics but can also increase production complexity and cost.

✅ Recommended Alternative

To achieve a clean and professional result, use:

• Solid colors
• Clear color separations
• Contrast should be created through shapes and composition instead of shading or tone transitions

What appears smooth on-screen will appear segmented in embroidery.

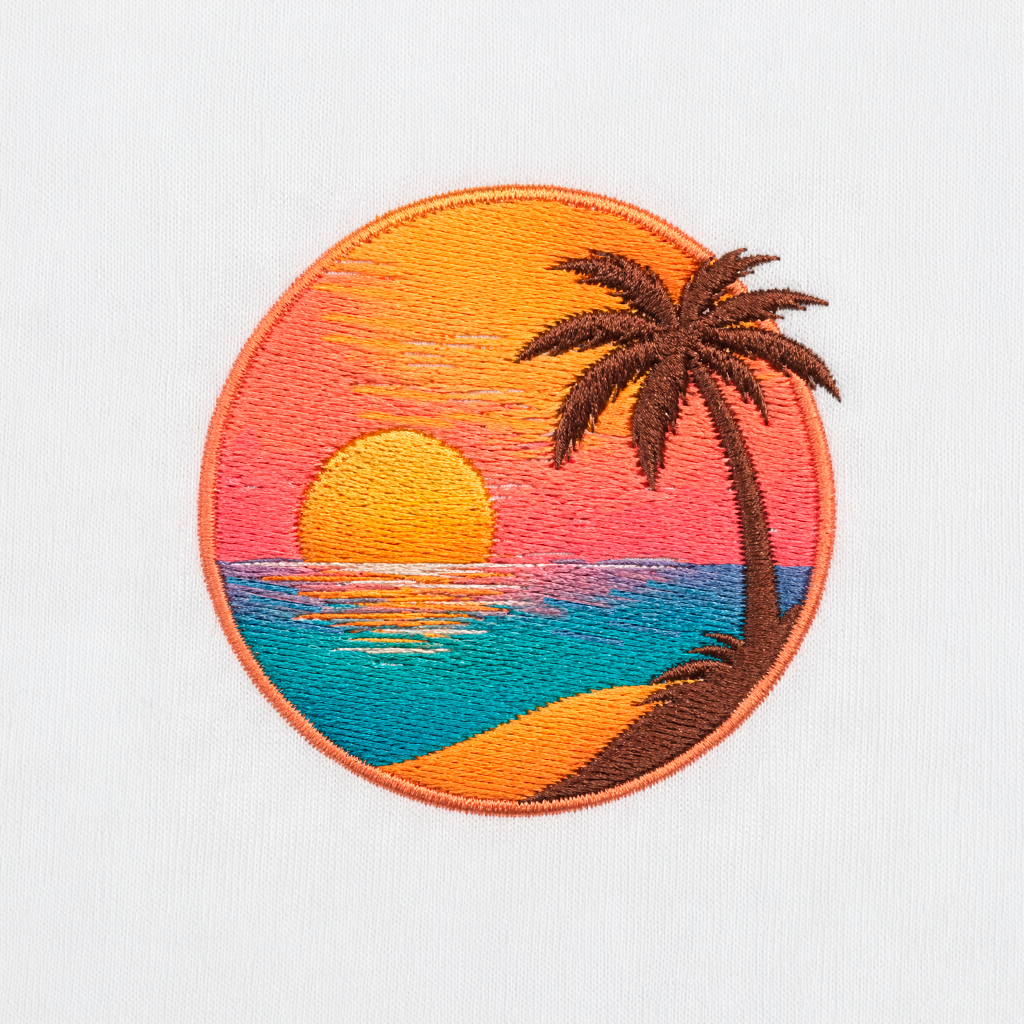

❌ Sample Artwork with Gradient	🪡 Embroidery Result

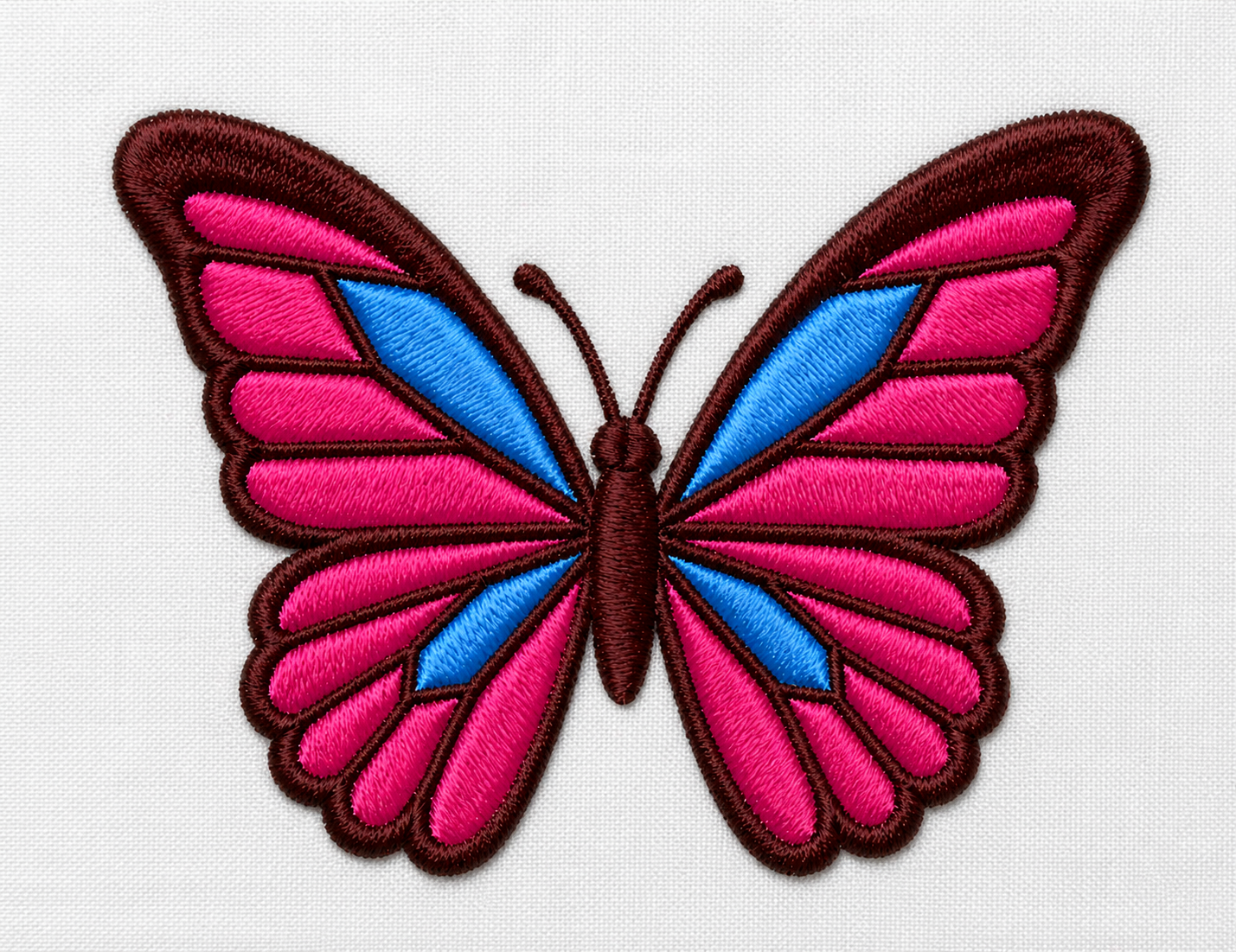

✅ Sample Artwork with  Solid Colors  & Clear Separations	🪡 Embroidery Result

📸 Photographic Images

Embroidery cannot replicate photographic images directly.

Photos must first be simplified into:

• Solid shapes
• Distinct color blocks
• Simplified artwork elements

Complex photo details may be lost during the embroidery process.

❌ Sample Photographic Image	✅ Sample  Simplified Image for Embroidery

☁️ 3D Puff Embroidery Guidelines

3D puff embroidery works best with bold, thick artwork.

Thin lines and delicate fonts are not suitable for puff embroidery because the raised foam structure requires enough stitch coverage.

✅ Recommended Specifications

• Line thickness between 0.2" and 0.5"
• Bold fonts and shapes
• Minimal fine details

⚠️ Avoid

• Thin elements
• Calligraphy fonts
• Delicate scripts

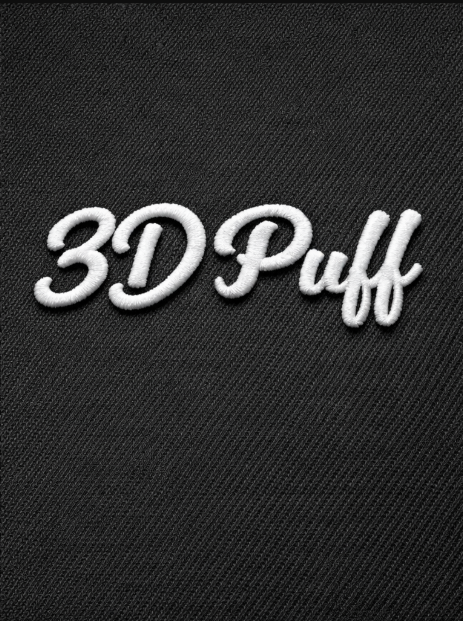

❌ Sample Artwork with Elements to Avoid	🪡 Embroidery Result

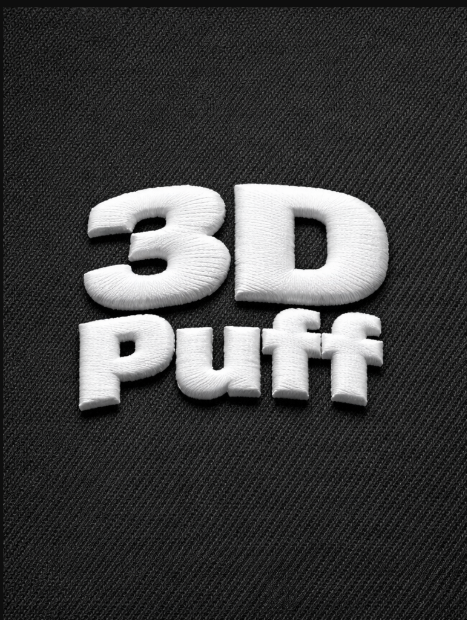

✅ Sample Artwork with Recommended Specifications	🪡 Embroidery Result

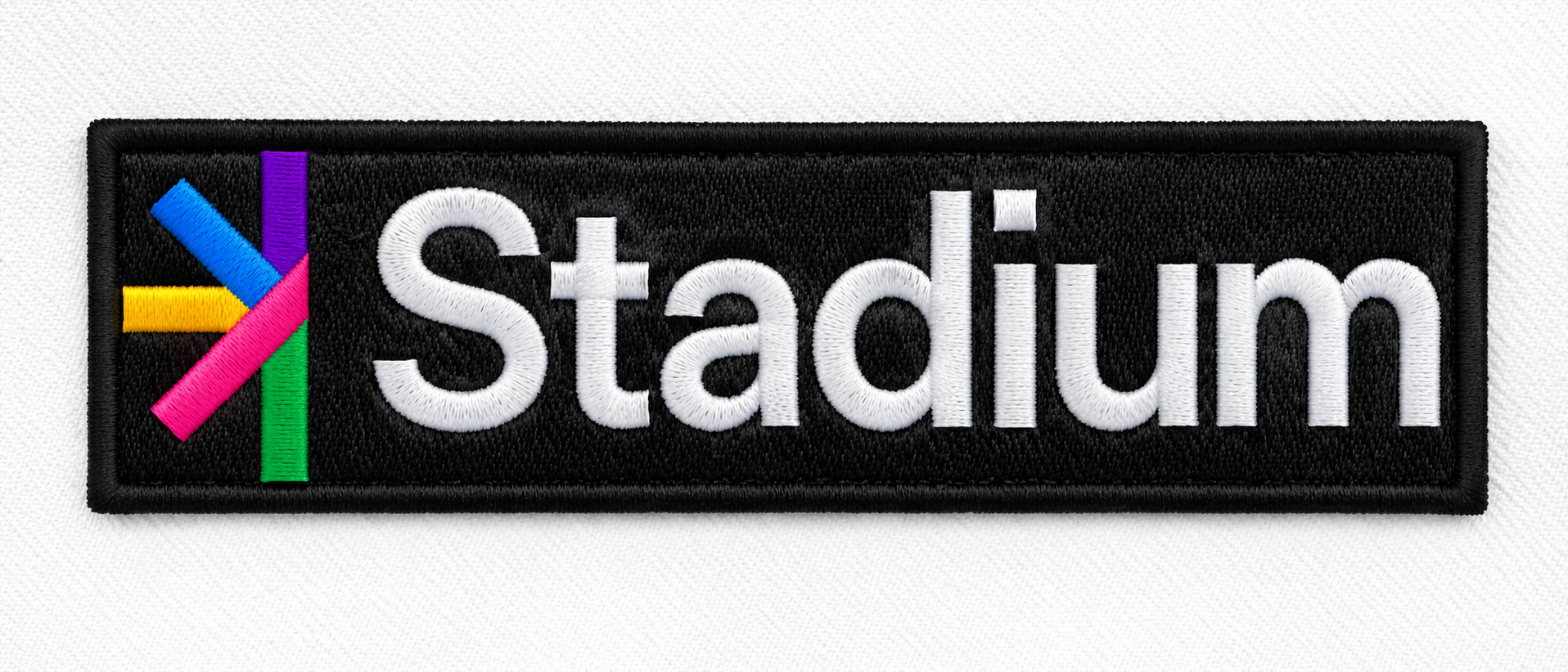

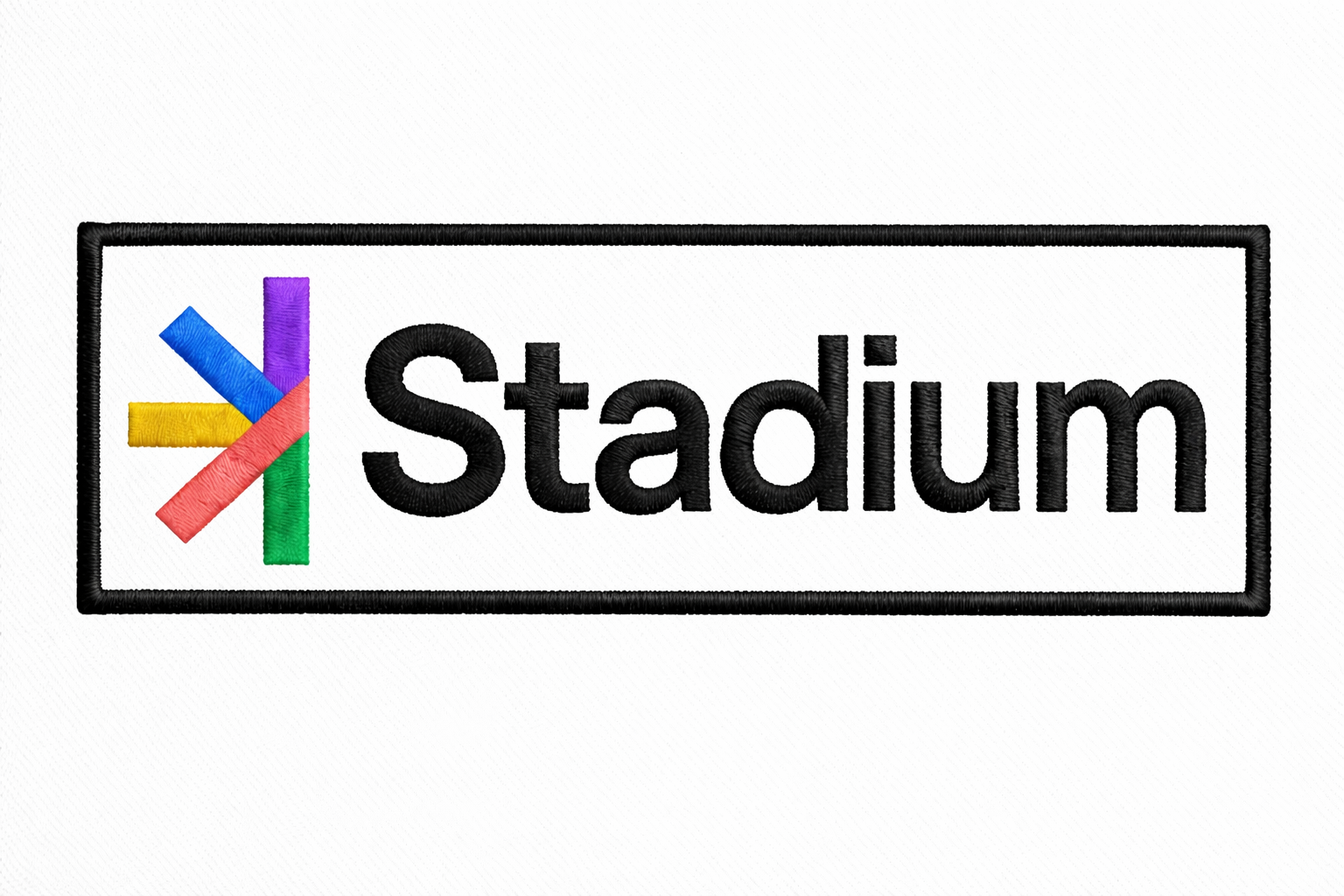

 🧱 Filled Backgrounds and Stitch Counts

Large filled areas significantly increase stitch counts.

Graphics with filled backgrounds or larger sizes may exceed the 6,000 stitch count threshold.


📌 Important Notes

 To help keep the stitch count within range:

• Remove unnecessary backgrounds whenever possible
• Designs with over 6,000 stitches may require additional review
• Designs exceeding 25,000 stitches are subject to additional charges

Simplified artwork helps improve production efficiency and embroidery quality.

❌ Sample Artwork with Filled Background	🪡 Embroidery Result

✅ Sample Artwork with Recommended Specifications	🪡 Embroidery Result

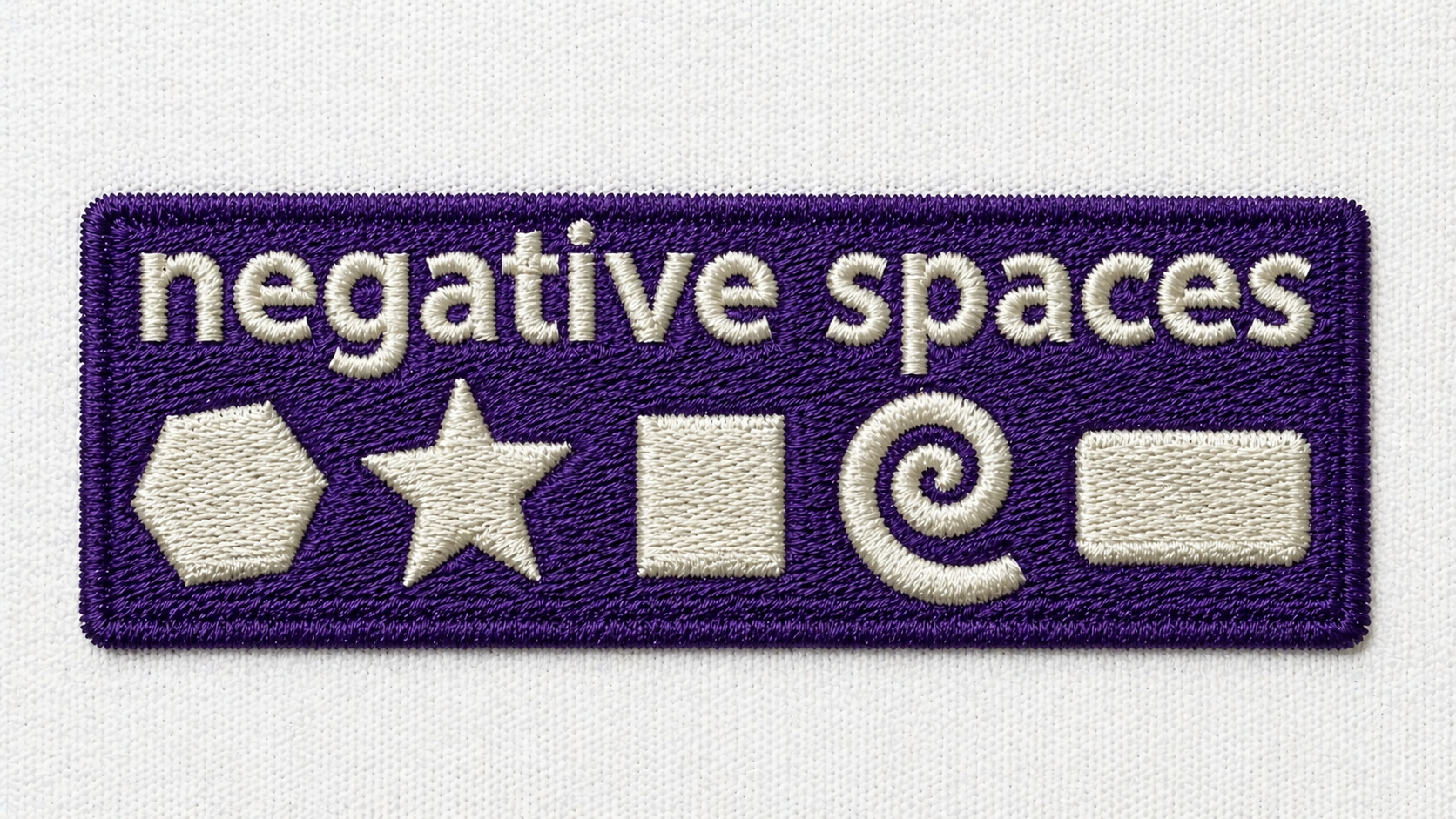

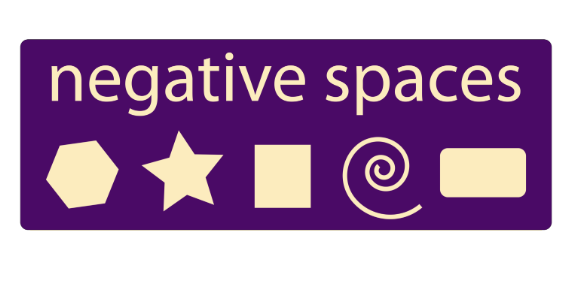

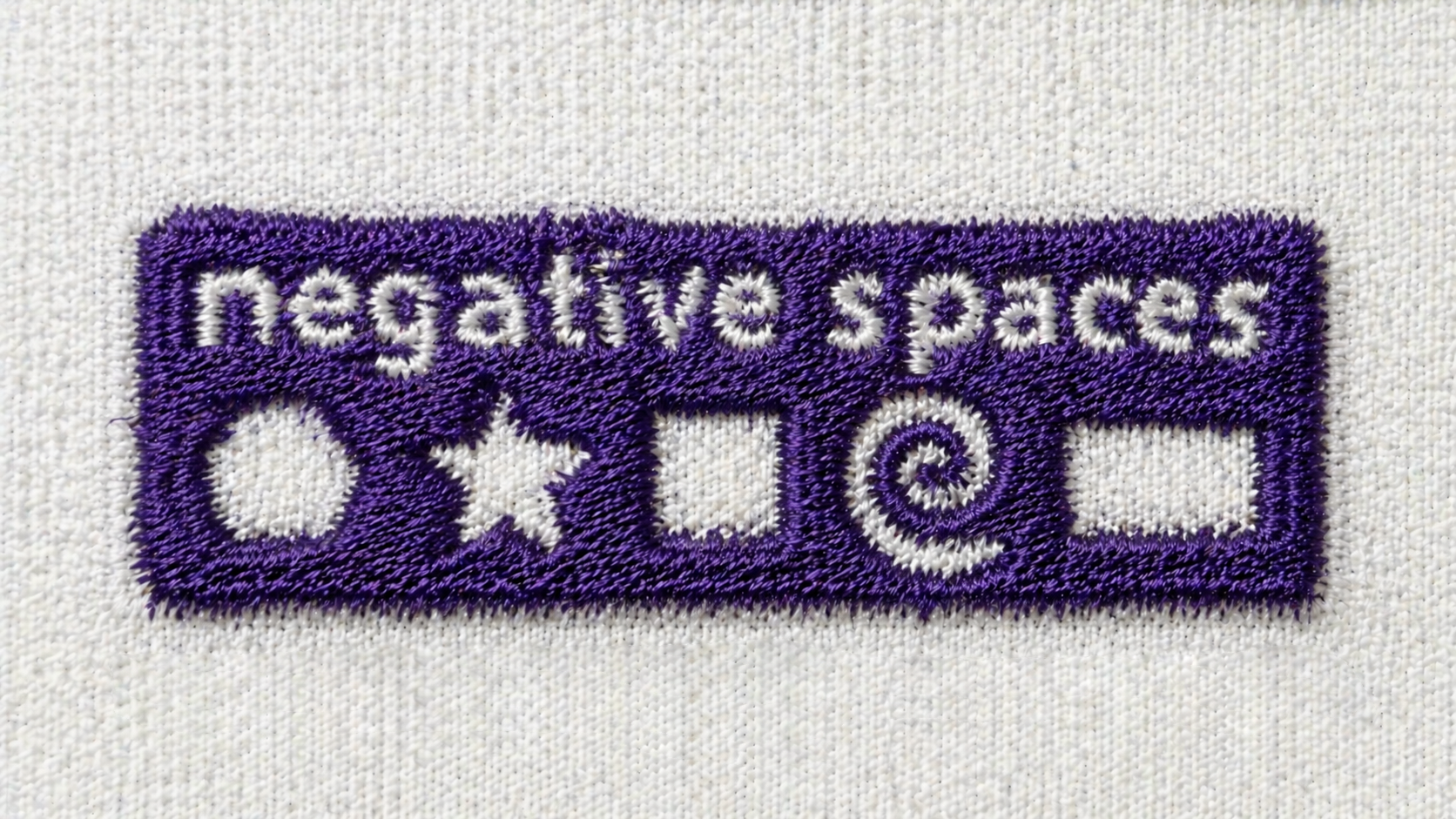

🕳️ Negative Space

Negative space plays a fundamental role in defining shapes and maintaining clarity in a design. However, in embroidery, these spaces are highly sensitive to scale and stitch behavior.

When gaps between elements are too small, thread tension and stitch density can cause them to close unintentionally. This results in merged shapes, loss of detail, and a reduction in overall legibility.

✅ Best Practices

• Leave generous spacing between elements
• Simplify internal details or structures
• Avoid tightly packed artwork
• Allow enough “breathing room” ensures that each element remains distinct after stitching.


In embroidery, empty space must be intentionally preserved.

❌ Sample Artwork with Elements to Avoid	🪡 Embroidery Result

✅ Sample Artwork with Recommended Specifications	🪡 Embroidery Result

🧢 Side Panel Embroidery for Caps

Cap side panels has small and curved space, so simpler layouts work best for clean results.

✅ Recommended Character Count

• Ideal: 3–8 characters per line
• Maximum safe limit: 10–12 characters per line

✨ Best Practices

• Use bold fonts
• Keep spacing clear
• Avoid thin scripts and complex lettering

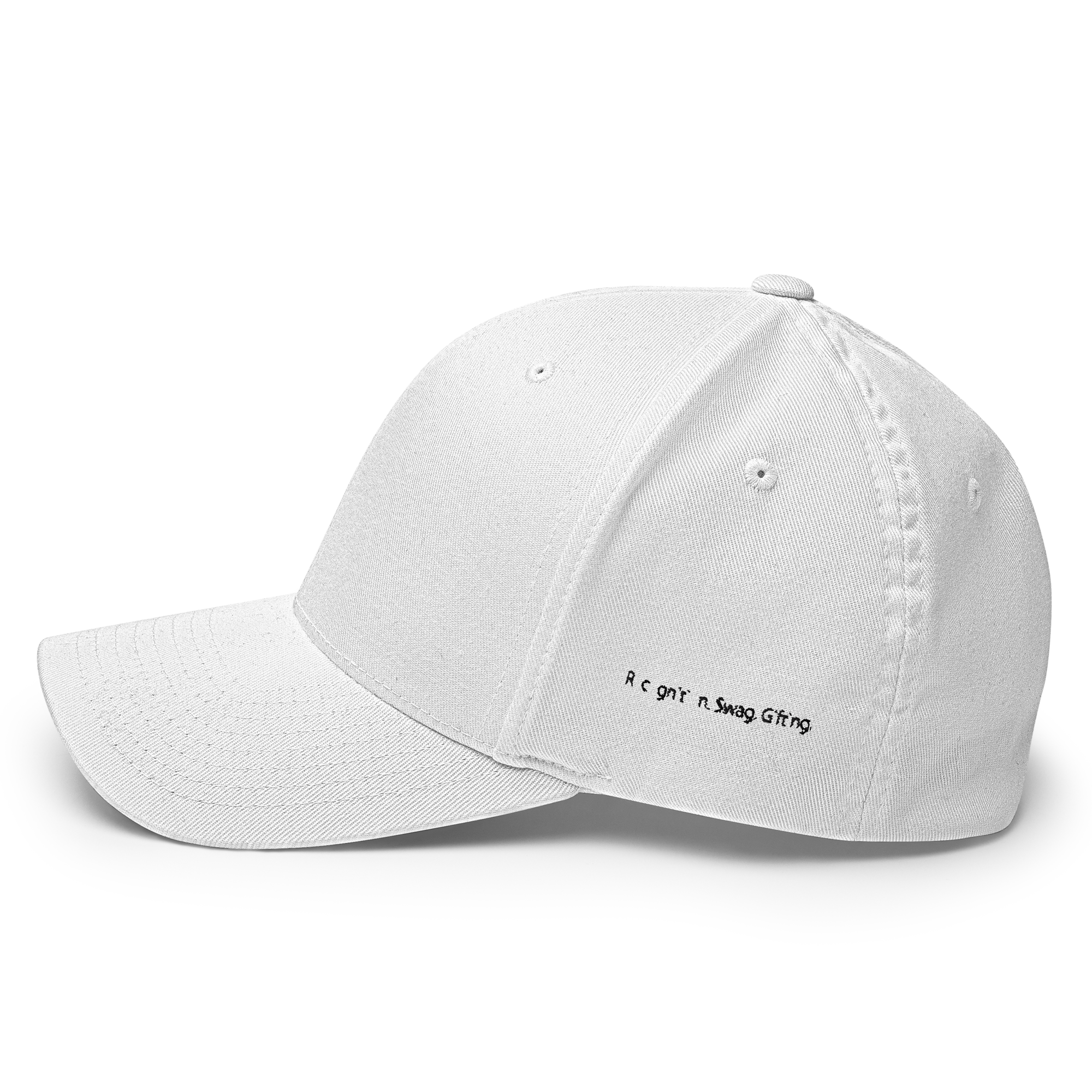

❌ Sample Artwork with Elements to Avoid	🪡 Embroidery Result
	.

✅ Sample Artwork with Recommended Specifications	🪡 Embroidery Result

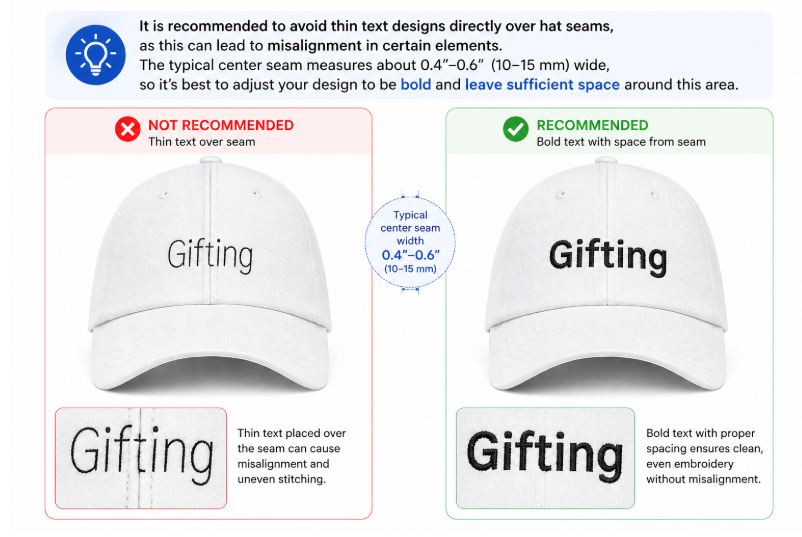

🪢 Embroidery on Seams

Avoid placing thin or detailed artwork directly over seams.

Hat center seams may cause:

• Misalignment
• Distortion
• Loss of detail

✅ Recommendations

• Use bold artwork around seam areas
• Leave enough spacing near seams
• Avoid thin text crossing seam lines

Typical center seams measure approximately 0.4"–0.6" (10–15 mm) wide.

📌 Important Embroidery Facts

👕 Results May Vary by Product

Embroidery results vary significantly depending on placement, garment type, size, color, and design thickness. A design that works well on a hoodie may not translate effectively onto a hat or polo. For best results, artwork should be adapted specifically for the intended product, ensuring it aligns with the physical and technical constraints of embroidery.

🎨 Color Expectations

Due to the limited availability of thread colors, we match your design to the closest available thread. Moreover, the colors viewed on screens (phones, tablets, monitors) can vary widely due to brightness, calibration, and display settings. As a result, the final embroidered thread color may look slightly different from what you see digitally.

Minor differences between thread batches, fabric types, and stitching techniques can affect the final appearance. These small variations are a natural part of the embroidery process and are not considered defects.

🧥 Garment Weight Matters

Garment weight plays a key role in embroidery quality. Heavier garments provide a stable surface that supports stitching, resulting in cleaner, more durable designs. Lighter-weight garments, on the other hand, tend to shift, pucker, or distort under the needle, which can compromise the final look.

✅ Best for Embroidery

• Hoodies
• Sweatshirts
• Jackets
• Thick cotton garments

⚠️ More Challenging Fabrics

• Lightweight garments
• Thin performance fabrics

🧠 Graphic vs. Digitization

Our digitizers determine the most suitable stitch types for each design based on how it will translate into embroidery. It’s important to follow the guidelines, as the final stitch selection depends on the specific details and characteristics of your graphic.

Different Results for Same Graphics

If you upload a new graphic that looks very similar to one you’ve submitted before, it may not be digitized in the exact same way. This is because we work with multiple digitizers and vendors, who manually process files, and each may interpret and digitize the design slightly differently.

🪡 Embroidery Backing

Embroidery backing is an extra layer of fabric placed on the inside of a product and stitched along with the design.

It helps:

• Stabilize the fabric
• Support the stitching
• Improve durability
• Maintain cleaner embroidery results

✂️ Tearaway Backing

Tearaway backing focuses on durability and structure.

Best for:

• Caps
• Bags
• Jackets
• Sweatshirts

💧 Water-Soluble Backing

Water-soluble backing helps create a cleaner and more polished finish.

Best for:

• Polos
• Towels
• Tech fabrics
• Lightweight garments

⚖️ Quick Comparison

• Tearaway = durability
• Water-soluble = clean, polished look.

🤝 Need Help Optimizing Your Artwork?

If your artwork is not embroidery-ready, our team can help refine and adapt your design for the best possible embroidered result.

We can assist with:

• Simplifying artwork
• Improving readability
• Adjusting sizing and spacing
• Optimizing designs for embroidery production

Our goal is to preserve the integrity of your design while ensuring the cleanest possible embroidered finish.
